Chest Type Units

Constamatic®
Constasal® - Constacon® - Constatwin® -TR

Chest Type Instruments

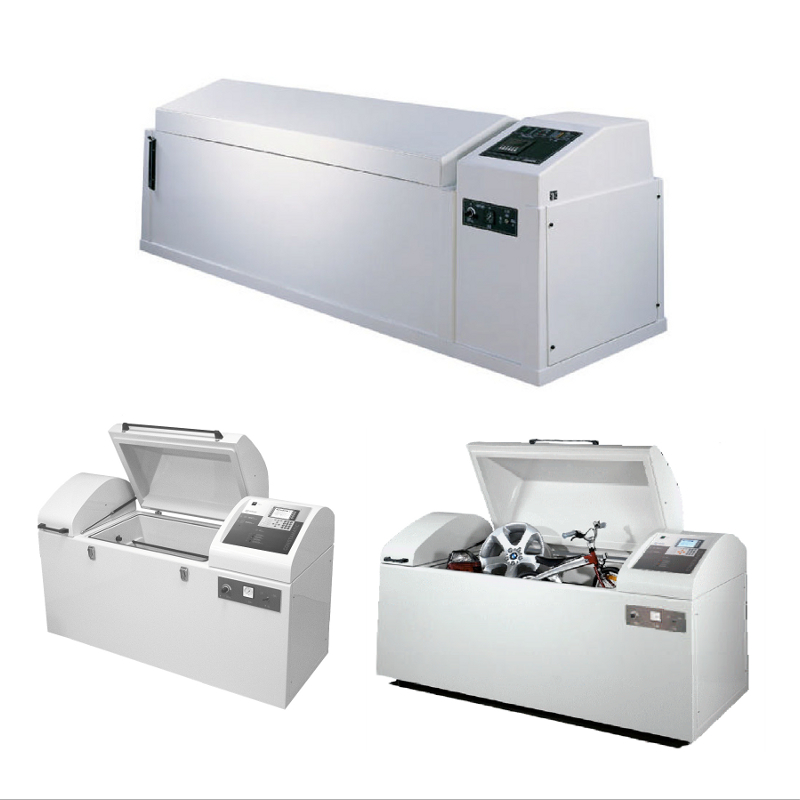

Liebisch chest type units are available in 400, 1000 and 2500 litre test chamber sizes. The user’s application decides which process system(s) will be installed.Here you can read details about the individual systems.

Accessories / Options CorroControl Software Functional Diagram

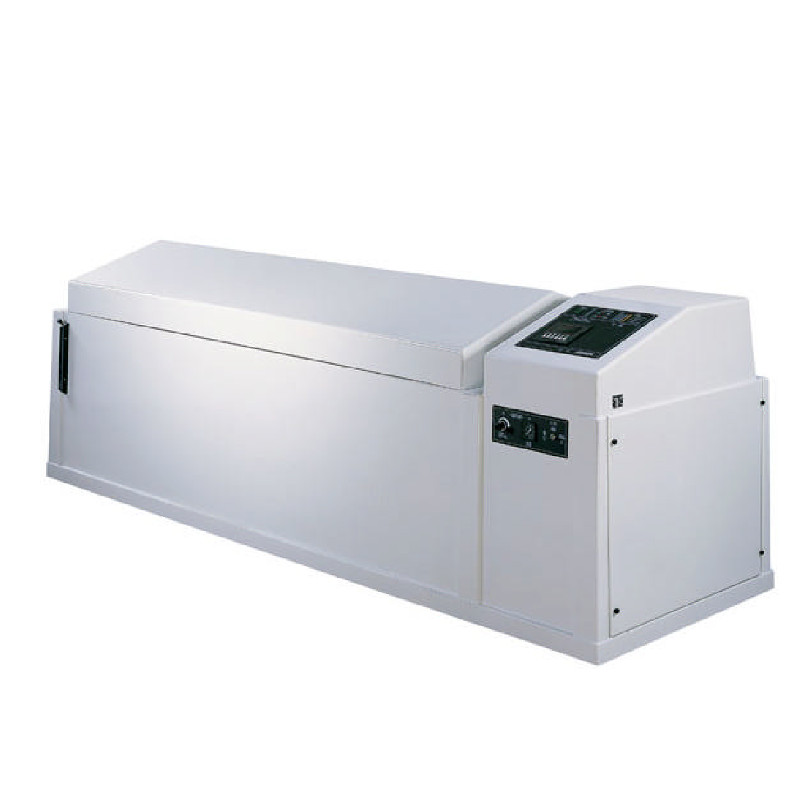

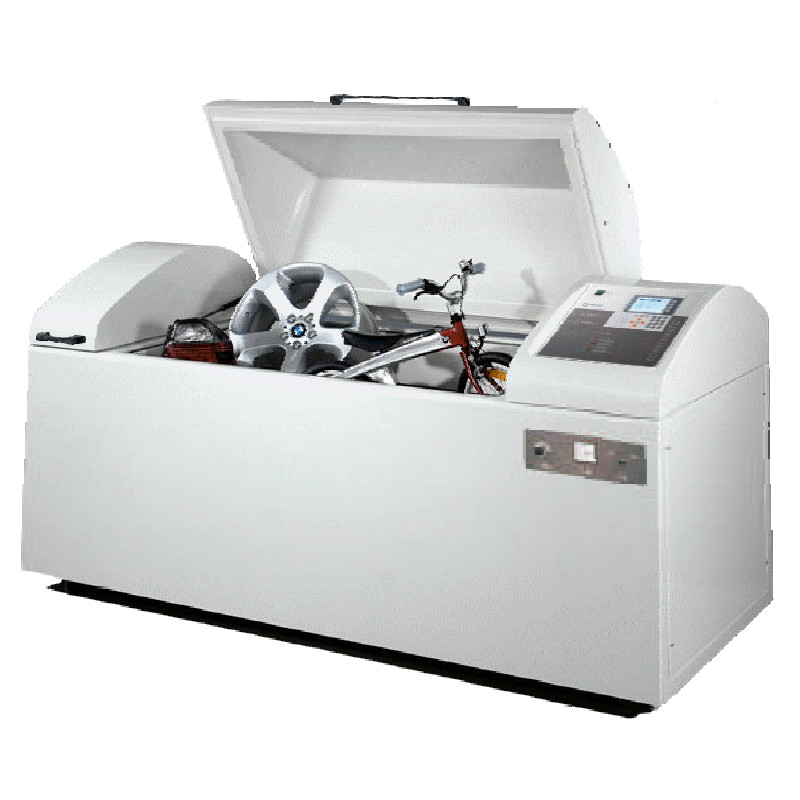

Constamatic® TR

This series are programmable and operate the A-TR range of cabinets. The unit’s easy to use programmer is mount in the control panel. All functions are displayed on a multi-line menu-driven display. The units can be equipped with systems for salt spray or built as combination testing units.

Constamatic A-TR can test acc. to following standards depending on the installed test systems:

  • ASTM B117
  • ASTM B368
  • ASTM G85 A3
  • ASTM G85 A5 Prohesion
  • Daimler PPAP 3002(Filiform)
  • DIN 50958
  • TS EN 13523-8
  • TS EN 3665
  • TS EN 60068 2-11
  • TS EN 60068-2-52
  • TS EN ISO 11997-1
  • TS EN ISO 16701
  • TS EN ISO 6270-1
  • TS EN ISO 6270-2
  • TS EN ISO 9227
  • TS ISO 9022-4
  • GM 9540 P
  • GME 60203*
  • GME 60205, 60206, 60207
  • GME 60213
  • GMW 14872
  • Honda 1
  • ISO 14993
  • JIS Z 2371
  • Mazda MCT-1H
  • Mazda MCT-2M
  • MIL STD 202F-101DC
  • MIL STD 810E-509.3
  • Nissan M0158-1, 2, 4
  • Renault D17 2028 ECC1
  • SAE J2334
  • VDA 621-415
  • VDA CCT new version
  • Volvo 423-0014
  • VW PV-1210*
Order Id
Type
Description
4101 6211
Chest type automatic units with 400 litres test chamber volume for salt spray tests.
4201 6211
Chest type automatic units with 1000 litres test chamber volume for salt spray tests.
4701 7211
Chest type automatic units with 2500 litres test chamber volume for salt spray tests.
4104 6211
Chest type automatic units with 400 litres test chamber volume without ventilation for condensed water tests.
4204 6211
Chest type automatic units with 1000 litres test chamber volume without ventilation for condensed water tests.
4104 6211
Chest type automatic units with 400 litres test chamber volume with automatic ventilation for condensed water tests.
4204 6211
Chest type automatic units with 1000 litres test chamber volume with automatic ventilation for condensed water tests.
4105 6211
Chest type automatic units with 400 litres test chamber volume for salt spray tests as well as condensed water corrosion tests.
4205 6211
Chest type automatic units with 1000 litres test chamber volume for salt spray tests as well as condensed water corrosion tests
4106 6211
Chest type units with 400 litres test chamber volume for combination tests with automatic ventilation.
4206 6211
Chest type units with 1000 litres test chamber volume for combination tests with automatic ventilation.
4706 7211
Chest type units with 2500 litres test chamber volume for combination tests with automatic ventilation.
4115 6211
Chest type units with 400 litres test chamber volume for ASTM G85 A5 Prohesion tests with automatic ventilation and warm air.
4215 6211
Chest type units with 1000 litres test chamber volume for ASTM G85 A5 Prohesion tests with automatic ventilation and warm air.
4116 6211
Chest type units with 400 litres test chamber volume for ASTM G85 A5 Prohesion tests with automatic ventilation and warm air and steam systems.
4216 6211
Chest type units with 1000 litres test chamber volume for ASTM G85 A5 Prohesion tests with automatic ventilation and warm air and steam systems.
4107 6211
Chest type units with 400 litres test chamber volume for combination tests with automatic ventilation and warm air.
4207 6211
Chest type units with 1000 litres test chamber volume for combination tests with automatic ventilation and warm air.
4707 7211
Chest type units with 2500 litres test chamber volume for combination tests with automatic ventilation and warm air.
4110 7211
Chest type units with 400 litres test chamber volume for combination tests with automatic ventilation, warm air and controlled relative humidity.
4707 7211
Chest type units with 1000 litres test chamber volume for combination tests with automatic ventilation, warm air and controlled relative humidity.
4710 7211
Chest type units with 2500 litres test chamber volume for combination tests with automatic ventilation, warm air and controlled relative humidity.
4210 7211-R
Chest type units with 2500 litres test chamber volume for combination tests with automatic ventilation, warm air and controlled relative humidity and rain option unit.
4218 7211
Chest type units with 1000 litres test chamber volume for combination tests with automatic ventilation, warm air, steam and controlled relative humidity.
4718 7211
Chest type units with 2500 litres test chamber volume for combination tests with automatic ventilation, warm air, steam and controlled relative humidity.

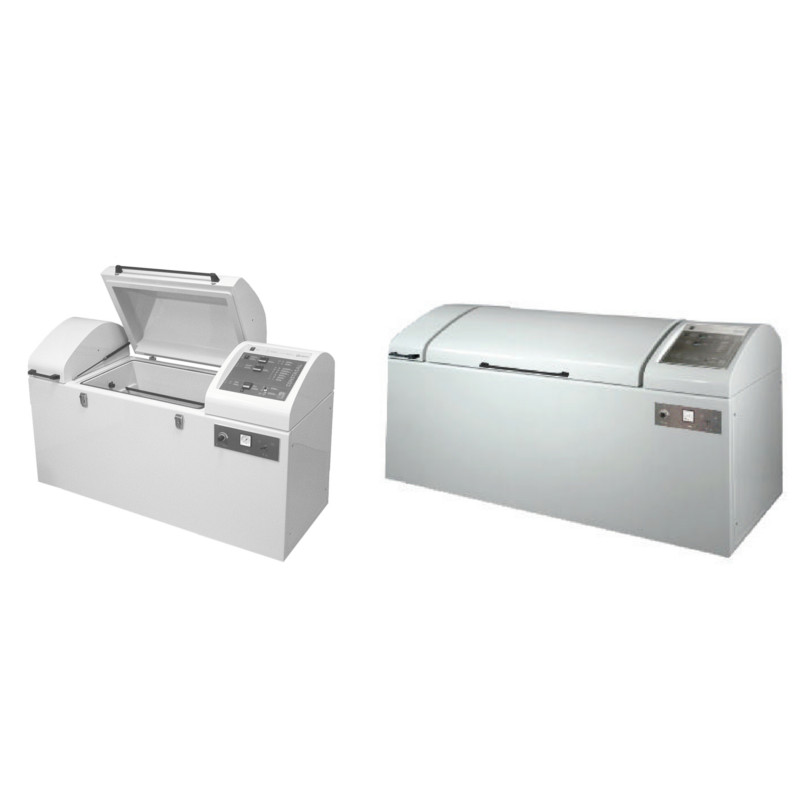

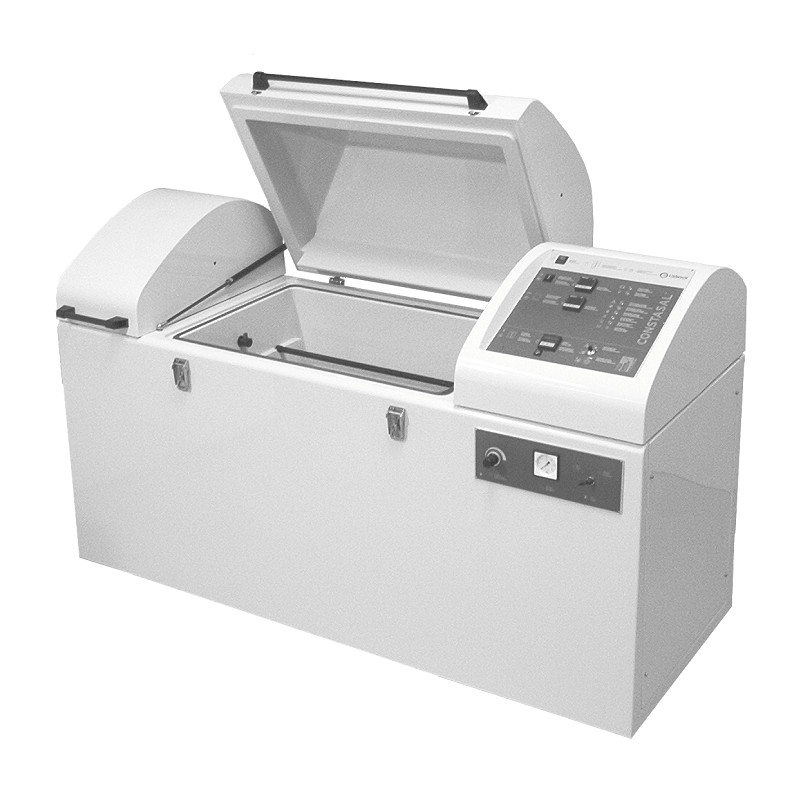

Constasal® TR

This series are manually operated cabinets of type M-TR for performing of salt spray tests such as DIN EN ISO 9227.

Constasal M-TR® can perform test acc to the following standards:

  • ASTM B117
  • ASTM B368
  • TS EN ISO 9227
  • TS EN 13523-8
  • TS 2093 EN 60068-2-11
  • TS ISO 9022-4
  • GME 60205, 60206, 60207
  • JIS Z 2371
  • MIL STD 202F-101DC
  • MIL STD 810E-509.3
Order Id
Type
Description
4101 6101
Chest type salt spray units with 400 litres test chamber volume without ventilation.
4201 6101
Chest type salt spray units with 1000 litres test chamber volume without ventilation.
4701 7101
Chest type salt spray units with 2500 litres test chamber volume without ventilation.
4115 6111
Chest type salt spray units with 400 litres test chamber volume with ventilation and hot air option.
4215 6111
Chest type salt spray units with 1000 litres test chamber volume with ventilation and hot air option.
Constatcon® TR

This series are manually operated cabinets of type M-TR for performing of condensation water tests such as DIN EN ISO 6270-2 (without pollution gas).

Constacon M-TR can perform test acc to the following standards:

  • DIN 50958
  • TS EN ISO 6270-1
  • TS EN ISO 6270-2
Order Id
Type
Description
4103 6101
Chest type condensation water testing units with 400 litres test chamber volume without ventilation.
4203 6101
Chest type condensation water testing units with 1000 litres test chamber volume without ventilation.
4703 7101
Chest type condensation water testing units with 2500 litres test chamber volume without ventilation.
4104 6111
Chest type condensation water testing units with 400 litres test chamber volume with ventilation.
4204 6111
Chest type condensation water testing units with 400 litres test chamber volume with ventilation.
Constatwin® TR

This series are manually operated cabinets of type M-TR for performing of salt spray tests such as DIN EN ISO 9227 and condensed water tests such as ISO 6270-2 individually.

Constatwin M-TR can perform test acc to the following standards:

  • DIN 50958
  • TS EN ISO 6270-1
  • TS EN ISO 6270-2
  • ASTM B117
  • ASTM B368
  • TS EN ISO 9227
  • TS EN 13523-8
  • TS 2093 EN 60068-2-11
  • TS ISO 9022-4
  • GME 60205, 60206, 60207
  • JIS Z 2371
  • MIL STD 202F-101DC
  • MIL STD 810E-509.3
Order Id
Type
Description
4105 6101
Chest type salt spray & condensation water testing units with 400 litres test chamber volume without ventilation.
4205 6101
Chest type salt spray & condensation water testing units with 1000 litres test chamber volume without ventilation.
4703 7101
Chest type salt spray & condensation water testing units with 2500 litres test chamber volume without ventilation.
